Wholesale 34-Piece Automotive Brake Line Flaring & Tubing Kit

The Commercial Value: Stop Selling Tools, Start Selling Solutions

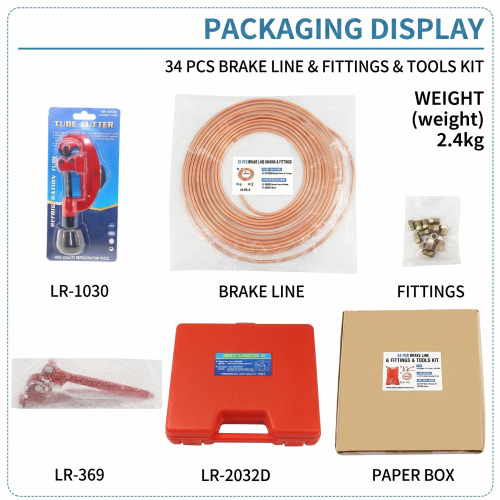

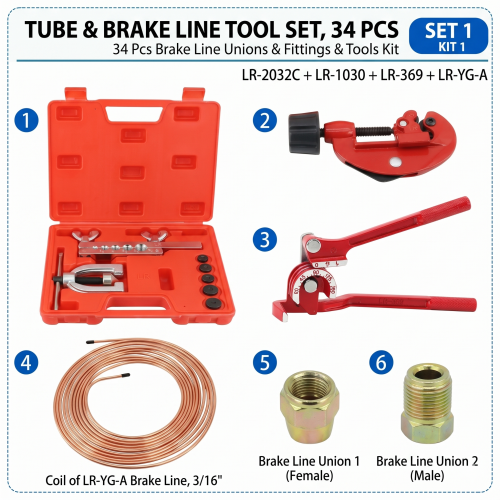

For automotive technicians, replacing corroded brake lines is often stalled by missing fittings or mismatched tools. Selling standalone flaring yokes limits your sales potential. The Longrun (LR) 34-Piece Brake Line Kit consolidates the entire repair workflow into a single 2.4kg retail package. By providing the tubing, the bending/cutting tools, and the exact M10 metric hardware together, distributors can significantly increase their average order value (AOV) while solving a major headache for local repair shops.

Technical Education: Why the "Double Flare" and Cu-Coating Matter

Brake fluid operates under immense hydraulic pressure. A standard 45° single flare will inevitably split and fail.

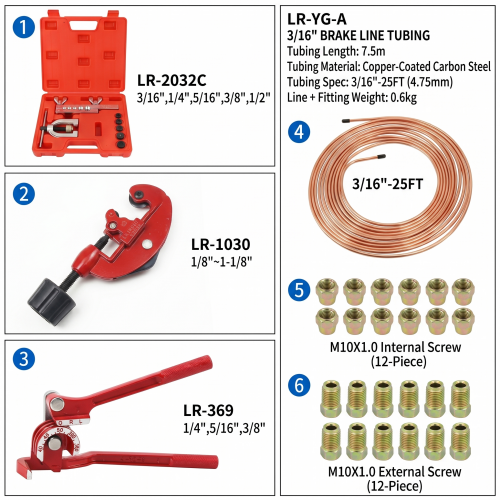

• The LR-2032C Yoke: Engineered specifically for the SAE Double Flare. It folds the tube wall back onto itself, creating a reinforced, dual-thickness seal that easily withstands sudden braking pressure.

• The 3/16" Copper-Coated Steel Line: Pure copper is too soft; plain carbon steel rusts rapidly. Our 25FT tubing uses a high-strength carbon steel core for pressure resistance, wrapped in a copper coating. This hybrid structure prevents rust while remaining malleable enough for hand-bending around tight chassis contours.

Real-World Application: The "Rust-Belt" Lifesaver

In regions prone to severe winter road salt (the "Rust Belt"), chassis corrosion destroys factory brake lines. Mechanics rely on this exact kit to custom-fabricate entire rear brake lines on 10-to-15-year-old trucks. Utilizing the LR-1030 cutter for clean 90-degree slices and the LR-369 180° bender to navigate around exhaust systems, technicians can restore a vehicle's braking system in a fraction of the time without leaving the garage to source parts.

Factory Quality Control: Built for the Professional

A single stripped thread can ruin a mechanic's day. Our factory QC protocols ensure zero defect rates out of the box:

• Fitting Tolerances: Each of the 24 included M10x1.0 metric fittings (12 internal, 12 external) undergoes strict thread-gauge audits to prevent cross-threading into brass proportioning valves.

• Burst & Stress Tests: We randomly sample our copper-coated tubing coils and execute tight-radius bends with the LR-369 to guarantee the copper coating will not flake or micro-crack under stress.

Private Labeling & Retail Packaging (OEM)

We specialize in helping mid-sized regional distributors build their own private-label tool catalogs without massive inventory commitments.

• Custom Blow-Molded Cases: We can mold your brand logo directly onto the durable red carrying case (LR-2032D).

• Outer Box Branding: The heavy-duty paper shipping box can be fully customized with your brand colors, SKU barcodes, and localized language.

• Retail-Ready Inserts: Inner tools (like the cutter) come in high-visibility blister cards, perfect for direct showroom display.




Frequently Asked Questions (FAQ) for Distributors

Q: Can the LR-369 tube bender handle copper-coated steel without kinking?A: Yes. The LR-369 is specifically calibrated with a grooved channel that supports the outer wall of 3/16", 1/4", 5/16", and 3/8" tubing, ensuring smooth 180-degree bends without collapsing the inner diameter.

Q: Are the included M10x1.0 fittings compatible with European and Japanese vehicles?A: Absolutely. The M10x1.0 is the most common metric brake line fitting worldwide, covering the vast majority of imported chassis repairs, making this kit universally appealing.

Q: Do you offer trial orders for custom-branded kits?A: We understand the need to test the market. We support flexible trial runs for regional distributors (typically around 200-500 sets) with full OEM branding applied to the case and outer packaging.
